The dentin bond strength and polymerization behavior of the dual-cured core foundation resins tested in this study were affected by the power densities of the curing unit. When using dual-cured core foundation systems, practitioners should consider power densities for getting optimal bond strength.

This study examined the influence of power density on dentin bond strength and polymerization behavior of dual-cured direct core foundation resin systems.

Two commercially available dual-cured direct core foundation resin systems, Clearfil DC Core Automix with Clearfil DC Bond and UniFil Core with Self-Etching Bond, were studied. Bovine mandibular incisors were mounted in autopolymerizing resin and the facial dentin surfaces were ground wet on 600-grit SiC paper. Dentin surfaces were treated according to manufacturer's recommendations. The resin pastes were condensed into the mold and cured with the power densities of 0 (no irradiation), 100, 200, 400 and 600 mW/cm2. Ten specimens per group were stored in 37°C water for 24 hours, then shear tested at a crosshead speed of 1.0 mm/minute in a universal testing machine. An ultrasonic measurement device was used to measure the ultrasonic velocities through the core foundation resins. The power densities selected were 0 (no irradiation), 200, and 600 mW/cm2, and ultrasonic velocity was calculated. ANOVA and Tukey HSD tests were performed at a level of 0.05.

The highest bond strengths were obtained when the resin pastes were cured with the highest power density for both core foundation systems (16.8 ± 1.9 MPa for Clearfil DC Core Automix, 15.6 ± 2.9 MPa for UniFil Core). When polymerized with the power densities under 200 mW/cm2, significantly lower bond strengths were observed compared to those obtained with the power density of 600 mW/cm2. As the core foundation resins hardened, the sonic velocities increased and this tendency differed among the power density of the curing unit. When the sonic velocities at three minutes after the start of measurements were compared, there were no significant differences among different irradiation modes for UniFil Core, while a significant decrease in sonic velocity was obtained when the resin paste was chemically polymerized compared with dual-polymerization for Clearfil DC Core Automix.

The data suggests that the dentin bond strengths and polymerization behavior of the dual-cured, direct core foundation systems are still affected by the power density of the curing unit. With a careful choice of the core foundation systems and power density of the curing unit, the benefit of using resin composites to endodontically-treated teeth might be acceptable.

Improvement of physical properties of resin composite and bonding ability of adhesive systems enable non-vital teeth to be restored by replacing only the tooth structure lost in endodontic treatment with direct core foundation resins.1–5 Selecting the appropriate adhesive system in combination with a resin core composite for this purpose is important to the success of the treatment,6–7 since there is a high correlation between the dentin bond strength and mechanical properties of polymerized resin.8 One of the critical requirements for dentin bonding is that the restorative systems must achieve complete polymerization after placement, so that the bond strength will be optimized in clinical situations. It has been reported that the shear bond strengths of resin composites to flat dentin were significantly influenced by the mechanical properties of resin composites.9

In some cases, a dual-cured material might be indicated, since polymerization will occur by chemical as well as light activation. The rationale was to have a material with extended working time and be capable of reaching a high conversion ratio. However, it has been reported that the dual-cured resins have poorer mechanical properties when the polymerization reaction is limited to chemical-cure mode alone.10–12 Thus, light irradiation seems to be important for dual-cured materials to achieve good mechanical properties and adhesion to tooth structure. It has been indicated that the regional bond strength of a light-cured resin composite to root canal dentin would be affected by the power density, which decreases due to the depth of the post cavity, because polymerization reaction of light-cured material is dependent upon the energy of irradiated light.13 The transmission of light through the resin composite, which is controlled by absorption and scattering by filler particle, plays important roles in achieving the high conversion rate of monomers. Since there is little information about how the power density of a curing unit affects the dentin bond strength of dual-cured direct core foundation systems, research into the influence of power density on the dentin bonding ability and polymerization characteristics of dual-cured resin core foundation systems is needed.

Measurement of the polymerization process of resin composites is challenging, because monomer conversion develops quickly after light irradiation. Ultrasonic imaging is a non-invasive technique that offers considerable potential for diagnosis, as well as being a valuable tool for research. Ultrasonic devices are used to detect demineralization of tooth substrates14–17 and to measure the dentin thickness between a tooth surface and the pulp chamber.18–21 Because the speed of sonic is sensitive to the viscoelastic properties of materials,22 ultrasonic devices can be used to monitor the polymerization behavior of core foundation resins.

This study examined the influence of the power density of a curing unit on the bond strengths of dual-cured direct core foundation systems to bovine dentin. The null hypothesis was that the dentin bond strengths and polymerization behavior of dual-cured resin core foundation systems were not affected by the power density of the curing unit.

Core Foundation System

Two dual-cured resin core foundation systems, Clearfil DC Core Automix (DC, Kuraray Medical Inc, Tokyo, Japan) and UniFil Core (UC, GC Corp, Tokyo, Japan), in combination with the manufacturer's corresponding adhesives, were used (Table 1). A visible-light curing unit (Optilux 400; Demetron/Kerr, Danbury, CT, USA) was connected to a variable-voltage transformer (Type S-130-10; Yamabishi Electric Co, Tokyo, Japan) in order to adjust the power density 100, 200, 400 or 600 mW/cm2; these values were determined using a dental curing radiometer (Model 100; Demetron/Kerr). The curing unit was put on the jig so that the distance between the light tip end and the specimen surface was maintained as unchanged during the experiments.

Table 1

Core Foundation Systems Tested in This Study

Core Foundation Systems Tested in This Study
Core Foundation Systems Tested in This Study

Dentin Bond Strength

A total of 100 mandibular incisors from two-to-three year old cattle were used as a substitute for human teeth.23–25 After removing the roots with a low-speed diamond saw (Isomet 1000; Buehler Ltd, Lake Bluff, IL, USA), pulps were removed and the pulp chamber of each tooth was filled with cotton to avoid penetration of the embedding medium. The labial surfaces of the bovine incisors were ground with wet 240-grit SiC paper to produce a flat dentin surface (Ecomet 4; Buehler Ltd). Each tooth was then mounted in self-curing acrylic resin (Trey Resin II; Shofu Inc, Kyoto, Japan) to expose the flattened area and placed in tap water to reduce the temperature rise from the exothermic polymerization reaction of the acrylic resin. The final finish of the dentin surface was accomplished by grinding on wet 600-grit SiC paper. After ultrasonic cleaning (Q140W/T; L & R Manufacturing, Kearny, NJ, USA) in distilled water for one minute to remove debris, the surfaces were washed with tap water and dried with oil-free compressed air.

Adhesive tape (NW-20; Nichiban Co, Tokyo Japan) was used to isolate the area of the tooth for bonding and a Teflon (Sanplatec Corp, Osaka, Japan) mold, 2.0 mm high and 4.0 mm in diameter, was used to form and hold the materials to the tooth surface. The dentin surfaces were treated according to each manufacturer's recommendations. For DC, equal amounts of Clearfil DC Bond (Kuraray Medical Inc) A and B liquids were mixed for five seconds and applied on the dentin for 20 seconds. After blowing strongly with air for five seconds, the adhesive was light polymerized for 20 seconds with the power density of 600 mW/cm2. The auto-mixed paste was directly inserted into the mold on the dentin surface followed by light polymerization for 40 seconds with power densities of 0 (no irradiation), 100, 200, 400 or 600 mW/cm2. For UC, one drop of each Self-Etching Bond (GC Corp) component was mixed for five seconds and applied on the dentin surface for 30 seconds. After mild air blowing for five seconds, the adhesive was light polymerized for 10 seconds with the power density of 600 mW/cm2. Equal amounts of resin pastes were mixed for 10 seconds, and the mixed resin paste was inserted into the mold on the dentin surface followed by light irradiation for 30 seconds with power densities of 0 (no irradiation), 100, 200, 400 or 600 mW/cm2

The mold and adhesive tape were removed from the specimen 10 minutes after light polymerization, then all the specimens were stored in 37°C water for 24 hours. The specimens in each group were tested in shear mode using a knife-edge testing apparatus in a screw-driven universal testing machine (Type 4204; Instron Corp, Canton, MA, USA) at a crosshead speed of 1.0 mm/minute. Shear bond strengths in MPa were calculated from the peak load at failure divided by the bond surface area. After testing, the specimens were examined under an optical microscope (SZH-131, Olympus Ltd, Tokyo, Japan) at a magnification of 10× to determine the location of the bond failure. The bonded area on the tooth was divided into eight equal segments and the percentage that was free of adhesive or restorative material was estimated for each segment.24 The types of failures were determined based on the predominant percentage of substrate-free material as: adhesive failure, cohesive failure in resin composite and cohesive failure in dentin.

Ultrasonic Velocity

The ultrasonic equipment employed in this study comprised a pulser–receiver (5900PR; Panametrics, Waltham, MA, USA), transducers (V155 and V156; Panametrics) and an oscilloscope (Waverunnner LT584, LeCroy, Tokyo, Japan) as shown in Figure 1.26 The transducer equipment was calibrated each time it was used by employing a standard calibration procedure on calibration blocks. The transducer was oriented perpendicular to the contact surface of each specimen.

Figure 1.

Ultrasonic measurement system used in the current study.

Figure 1.

Ultrasonic measurement system used in the current study.

Close modal

Ultrasonic velocities were determined by measuring the time taken for an ultrasonic pulse to transverse the specimen. Ultrasonic waves were propagated from the transducer to the specimen, and time taken for the pulse to travel from transducer through the specimen to the receiver was determined from the waveform. The time delay and measured path length (specimen thickness) were then used to calculate the ultrasonic velocity in the specimen.

Core foundation resin composites were mixed according to the manufacturer's instruction and inserted into the transparent mold (2 mm in thickness). Then the specimen was put on the sample stage and light irradiated (40 seconds for DC, 30 seconds for UC) with power densities of 0 (no irradiation), 200 and 600 mW/cm2. The transit time through the specimen disk was divided by the specimen thickness, in order to account for the sonic velocity within the material. The measurements were repeated three times for each irradiation condition.

Statistical Analysis

For purposes of analysis, each resin core system was treated as an independent experiment to compare the results from the different power densities. The bond strength data for each resin system was subjected to a one-way ANOVA on the five groups from each resin core system. Multiple comparisons were then conducted using Tukey's HSD test at a level of 0.05. All statistical analyses were performed using a commercial statistical software package (Sigma Stat; Version 3.1, SPSS Inc, Chicago, IL, USA).

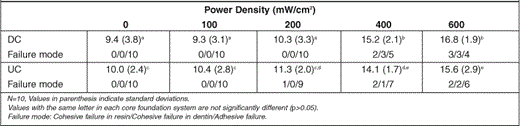

The results of influence of power density of curing unit on the shear bond strengths are shown in Table 2. For both core foundation systems, the highest bond strengths were obtained when the highest power density was employed, and statistically significant differences were found compared to values obtained with the lower power densities (below 200mW/cm2).

Table 2

Influence of Power Density of the Curing Unit on Dentin Bond Strengths (in MPa) of Direct Resin Core Foundation Systems

Influence of Power Density of the Curing Unit on Dentin Bond Strengths (in MPa) of Direct Resin Core Foundation Systems
Influence of Power Density of the Curing Unit on Dentin Bond Strengths (in MPa) of Direct Resin Core Foundation Systems

The results of failure modes recorded for each group are listed in Table 2. For both core foundation systems, the predominant failure mode was adhesive failure between dentin and adhesive resin, if the resin pastes were light irradiated with lower power densities. When the resin pastes were light irradiated with higher power density, failure mode changed to cohesive failure.

The changes in the ultrasonic velocities within the core foundation resins as a function of time are shown in Figures 2 and 3. In the earliest stages of the setting process, most of the ultrasonic energy was absorbed by the core foundation resins, and the echoes that passed through the resin composites were too weak to detect when the resin composites were chemically cured without light irradiation. As the core foundation resins hardened, the sonic velocities increased until they reached a plateau for UC. For DC, the sonic velocities gradually increased 10 minutes after the start of measurement. Although the sonic echoes could be detected from the beginning of the measurements, the rates of sonic velocity increase were relatively slow. When the resin pastes were light irradiated, a rapid increase in sonic velocities was investigated for all specimens regardless of power density employed (200 or 600 mW/cm2). After light irradiation, the sonic velocities reached a certain value and thereafter increased only slightly.

Figure 2.

The influence of power densities on changes in ultrasound velocities in core foundation resins as a function of time.

Figure 2.

The influence of power densities on changes in ultrasound velocities in core foundation resins as a function of time.

Close modal
Figure 3.

The influence of chemical polymerization (without irradiation) on changes in ultrasound velocities in core foundation resins as a function of time.

Figure 3.

The influence of chemical polymerization (without irradiation) on changes in ultrasound velocities in core foundation resins as a function of time.

Close modal

When the sonic velocities at three minutes after the start of measurements were compared, there were no significant differences among the different irradiation modes for UC, while a significant decrease in sonic velocity was obtained when the resin paste was chemically polymerized compared with dual-polymerization for DC (Table 3).

Table 3

Influence of Power Density of the Curing Unit on Longitudinally Sonic Velocities (in m/second) of Direct Resin Core Foundation Systems

Influence of Power Density of the Curing Unit on Longitudinally Sonic Velocities (in m/second) of Direct Resin Core Foundation Systems
Influence of Power Density of the Curing Unit on Longitudinally Sonic Velocities (in m/second) of Direct Resin Core Foundation Systems

It is known that the power density reaching the material is drastically reduced when light is transmitted through a material. The power density decreased exponentially as a function of the material thickness.27 So, dual-cured core foundation resins have been recommended to compensate for the attenuation of the curing light affected by the depth of the post cavity.28 Based on the results of the current study, the null hypothesis that the bonding ability of dual-cured core foundation resins was not affected by power density of the curing unit was not confirmed. When the resin paste was dual-cured with higher power densities, higher values of dentin bond strengths were found. On the other hand, lower bond strengths obtained when the resin pastes were polymerized with the power densities under 200 mW/cm2, including no irradiation, may suggest inferior physical properties due to poorly polymerized resin.9 This indicated that, with the same reason, the mechanical properties of the material at the coronal portion were better than those at the apical portion. Therefore, the properties of dual-cured core foundation resins may be different at different regions of the post cavity because of the reduction of light energy in the deeper regions of the post cavity, and this may also affect regional bond strengths.

A study29 was performed to evaluate the regional ultimate tensile strength and Knoop hardness of various dual-cured core foundation resins and their regional bond strengths to root canal dentin using a photo-cured self-etching priming adhesive system, and their conclusions were that the ultimate tensile strength and microhardness of the core foundation resins varied depending on the type of material. The mechanical properties of the resins at the coronal region were found to be superior to those at the apical region of the post space; however, differences in the mechanical properties of the resin core foundation resins did not affect their adhesion to root canal dentin. From the results of polymerization behavior by means of ultrasonic measurement, the sonic velocity increased gradually when the resin pastes were chemically polymerized, and neither significant nor rapid increases were observed for DC. On the other hand, UC revealed rapid increases in the ultrasonic velocities after 120 seconds from the start of measurement and reached to plateau.

In the current study, non-destructive ultrasonic testing was applied to monitor the polymerization behaviors of core foundation resins, based on the relationship between the ultrasonic velocities and the elastic constants described by a micromechanical model.30 Higher ultrasonic velocities indicate higher polymerization reaction of resins. Though the time required to reach the plateau was much longer than light irradiated specimens, there were no significant differences in sonic velocities recorded for UC. When the resin pastes were light irradiated with the power densities of 200 or 600 mW/cm2, changes in ultrasonic velocities were similar for both core foundation resins. It has been indicated that lower bond strengths are obtained with the lower degree of conversion and resultant lower physical properties of dual-cured resins.31 This generalization fits to DC, but not to UC, which exhibited lower bond strength without inferior polymerization.

The adhesive systems tested are polymerized via a dual polymerized reaction and a photosensitizer, such as camphorquinone (CQ), is employed in conjunction with the binary peroxide-amine catalytic components commonly employed in chemical polymerized resins.32 CQ requires a coinitiator for an effective polymerization process to occur, and a tertiary amine photoreductant is employed. The tertiary amine interacts with an activated triplet state of CQ to form an intermediate excited complex followed by the production of reactive radicals for polymerization.

The adhesive systems used in this study are categorized as self-etching systems. These self-etching adhesives are aqueous mixtures of acidic functional monomers and other constituents. Since acidic components of these adhesives are primarily dicarboxylic acids, superficial dentin beneath the smear layer is simultaneously demineralized and infiltrated with resin monomers.33 After infiltration into the etched/primed dentin, resin monomers must sufficiently polymerize to create a durable bond. However, self-etching adhesives contain acidic monomer and, consequently, a high concentration of uncured acidic monomers would be present on the superficial layer of cured adhesives.

It is possible that the polymerization ability of the core-foundation resin is affected by the acidic moieties, since tertiary amines in the resin paste might be neutralized by the acidic functional monomers in the adhesive. The adhesive functional monomers affect the polymerization of BPO/amine or even CQ/amine catalysts, resulting in poor polymerization leading to poor interaction within the resin paste.34 To improve polymerization in the presence of acidic monomers, accelerators, such as aromatic sulfinic acid sodium salts, were incorporated, together with initiator systems.35 Incompatibility between the adhesives and the core-foundation resin does not occur under higher power density conditions. However, improper polymerization occurs when the dual-cured resin paste polymerizes primarily within a chemical reaction, which probably leads to adverse interaction between the nucleophilic tertiary amine and acidic functional monomers.36

Although the most reliable conclusions about the performance of bonding systems in the oral environment must be derived from long-term clinical trials, in vitro studies provide initial information. The use of additional chemical analysis techniques should further improve understanding of adverse chemical interactions between self-etch adhesives and dual-polymerized resins. Further research is needed in order to elucidate suitable combinations of adhesives and direct core foundation resin pastes. Although polymerization mode in dual-polymerized core foundation systems affect bonding ability, care should be taken not to infer clinical success from bond strength values alone.

For the dual-cured resin direct core foundation systems studied, dual polymerization with higher power densities resulted in higher bond strengths. If the core resin was polymerized with the power densities under 200 mW/cm2, significant reductions in bond strengths were obtained. The data suggests that the dentin bond strengths and polymerization behavior of the dual-cured, direct core foundation systems are still affected by the power density of the curing unit.

This work was supported, in part, by Grant-in-Aid for Scientific Research (C) 20592237 and 19592211, by a Grant-in-Aid for Young Scientists (B) 19791415 from the Japan Society for the Promotion of Science, by a Grant from the Dental Research Center, Nihon University School of Dentistry and by the Sato Fund, Nihon University School of Dentistry.

1
Ferrari
,
M.
,
F.
Mannocci
,
A.
Vichi
,
M. C.
Cagidiaco
, and
I. A.
Mjör
.
2000
.
Bonding to root canal: Structural characteristics of the substrate.
American Journal of Dentistry
13
5
:
255
260
.
2
Monticelli
,
F.
,
S.
Grandini
,
C.
Goracci
, and
M.
Ferrari
.
2003
.
Clinical behavior of translucent-fiber posts: A 2-year prospective study.
The International Journal of Prosthodontics
16
6
:
593
596
.
3
Goracci
,
C.
,
F. T.
Sadek
,
A.
Fabianelli
,
F. R.
Tay
, and
M.
Ferrari
.
2005
.
Evaluation of the adhesion of fiber posts to intraradicular dentin.
Operative Dentistry
30
5
:
627
635
.
4
Nothdurft
,
F. P.
and
P. R.
Pospiech
.
2006
.
Clinical evaluation of pulpless teeth restored with conventionally cemented zirconia posts: A pilot study.
The Journal of Prosthetic Dentistry
95
4
:
311
314
.
5
Valandro
,
L. F.
,
P.
Baldissara
,
G. A.
Galhano
,
R. M.
Melo
,
A.
Mallmann
,
R.
Scotti
, and
M. A.
Bottino
.
2007
.
Effect of mechanical cycling on the push-out bond strength of fiber posts adhesively bonded to human root dentin.
Operative Dentistry
32
6
:
579
588
.
6
Oooka
,
S.
,
M.
Miyazaki
,
T.
Takamizawa
,
K.
Tsubota
,
H.
Kurokawa
, and
A.
Rikuta
.
2004
.
Influence of adhesive polymerization mode on dentin bond strength of direct core foundation systems.
Journal of Oral Sciences
46
3
:
185
189
.
7
Latta
,
M. A.
,
W. P.
Kelsey
3rd
, and
W. P.
Kelsey
5th
.
2006
.
Effect of polymerization mode of adhesive and cement on shear bond strength to dentin.
American Journal of Dentistry
19
2
:
96
100
.
8
Yanagawa
,
T.
and
W. J.
Finger
.
1994
.
Relationship between degree of polymerization of resin composite and bond strength to Gluma-treated dentin.
American Journal of Dentistry
7
3
:
157
160
.
9
Hasegawa
,
T.
,
K.
Itoh
,
T.
Koike
,
W.
Yukitani
,
H.
Hisamitsu
,
S.
Wakumoto
, and
A.
Fujishima
.
1999
.
Effect of mechanical properties of resin composites on the efficacy of the dentin bonding system.
Operative Dentistry
24
6
:
323
330
.
10
Oook
,
S.
,
M.
Miyazaki
,
A.
Rikut
, and
B. K.
Moore
.
2004
.
Influence of polymerization mode of dual-polymerized resin direct core foundation systems on bond strengths to bovine dentin.
Journal of Prosthetic Dentistry
92
3
:
239
244
.
11
Giannini
,
M.
,
M. F.
de Goes
,
T.
Nikaido
,
Y.
Shimada
, and
J.
Tagami
.
2004
.
Influence of activation mode of dual-cured resin composite cores and low-viscosity composite liners on bond strength to dentin treated with self-etching adhesives.
The Journal of Adhesive Dentistry
6
4
:
301
306
.
12
Akgungor
,
G.
and
B.
Akkayan
.
2006
.
Influence of dentin bonding agents and polymerization modes on the bond strength between translucent fiber posts and three dentin regions within a post space.
The Journal of Prosthetic Dentistry
95
5
:
368
378
.
13
Aksornmuang
,
J.
,
M.
Nakajima
,
R. M.
Foxton
, and
J.
Tagami
.
2007
.
Mechanical properties and bond strength of dual-cure resin composites to root canal dentin.
Dental Materials
23
2
:
226
234
.
14
Peck
,
S. D.
,
J. M.
Rowe
, and
G. A.
Briggs
.
1989
.
Studies on sound and carious enamel with the quantitative acoustic microscope.
Journal of Dental Research
68
2
:
107
112
.
15
Caliskan Yanikoglu
,
F.
,
F.
Oztürk
,
O.
Hayran
,
M.
Analoui
, and
G. K.
Stookey
.
2000
.
Detection of natural white spot caries lesions by an ultrasonic system.
Caries Research
34
3
:
225
232
.
16
Matalon
,
S.
,
O.
Feuerstein
, and
I.
Kaffe
.
2003
.
Diagnosis of approximal caries: Bite-wing radiology versus the Ultrasound Caries Detector. An in vitro study.
Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology, & Endodontics
95
5
:
626
631
.
17
Matalon
,
S.
,
O.
Feuerstein
,
S.
Calderon
,
A.
Mittleman
, and
I.
Kaffe
.
2007
.
Detection of cavitated carious lesions in approximal tooth surfaces by ultrasonic caries detector.
Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology, & Endodontics
103
1
:
109
113
.
18
Hatton
,
J. F.
,
D. H.
Pashley
,
J.
Shunk
, and
G. P.
Stewart
.
1994
.
In vitro and in vivo measurement of remaining dentin thickness.
Journal of Endodontics
20
12
:
580
584
.
19
Huysmans
,
M. C.
and
J. M.
Thijssen
.
2000
.
Ultrasonic measurement of enamel thickness: A tool for monitoring dental erosion?
Journal of Dentistry
28
3
:
187
191
.
20
Bozkurt
,
F. O.
,
D. A.
Tagtekin
,
O.
Hayran
,
G. K.
Stookey
, and
Yanikoglu
.
2005
.
Accuracy of ultrasound measurement of progressive change in occlusal enamel thickness.
Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology, & Endodontics
99
1
:
101
105
.
21
Ng
,
S. Y.
,
P. A.
Payne
,
N. A.
Cartledge
, and
M. W.
Ferguson
.
1989
.
Determination of ultrasonic velocity in human enamel and dentine.
Archives of Oral Biology
34
5
:
341
345
.
22
Nakamichi
,
I.
,
M.
Iwaku
, and
T.
Fusayama
.
1983
.
Bovine teeth as possible substitutes in the adhesion test.
Journal of Dental Research
62
10
:
1076
1081
.
23
Fowler
,
C. S.
,
M. L.
Swartz
,
B. K.
Moore
, and
B. F.
Rhodes
.
1992
.
Influence of selected variables on adhesion testing.
Dental Materials
8
4
:
265
269
.
24
Schilke
,
R.
,
O.
Bauss
,
J. A.
Lisson
,
M.
Schuckar
, and
W.
Geurtsen
.
1999
.
Bovine dentin as a substitute for human dentin in shear bond strength measurements.
American Journal of Dentistry
12
2
:
92
96
.
25
Yasuda
,
G.
,
H.
Inage
,
T.
Takamizawa
,
H.
Kurokawa
,
A.
Rikuta
, and
M.
Miyazaki
.
2007
.
Determination of elastic modulus of demineralized resin-infiltrated dentin by self-etch adhesives.
European Journal of Oral Sciences
115
1
:
87
91
.
26
Rasetto
,
F. H.
,
C. F.
Driscoll
,
V.
Prestipino
,
R.
Masri
, and
J. A.
von Fraunhofer
.
2004
.
Light transmission through allceramic dental materials: A pilot study.
The Journal of Prosthetic Dentistry
91
5
:
441
446
.
27
Foxton
,
R. M.
,
M.
Nakajima
,
J.
Tagami
, and
H.
Miura
.
2003
.
Bonding of photo and dual-cure adhesives to root canal dentin.
Operative Dentistry
28
5
:
543
551
.
28
Aksornmuang
,
J.
,
M.
Nakajima
,
R. M.
Foxton
, and
J.
Tagami
.
2007
.
Mechanical properties and bond strength of dual-cure resin composites to root canal dentin.
Dental Materials
23
2
:
226
234
.
29
Whiting
,
R.
and
P. H.
Jacobsen
.
1980
.
A non-destructive method of evaluating the elastic properties of anterior restorative materials.
Journal of Dental Research
59
11
:
1978
1984
.
30
Caughman
,
W. F.
,
D. C.
Chan
, and
F. A.
Rueggeberg
.
2001
.
Curing potential of dual-polymerizable resin cements in simulated clinical situations.
The Journal of Prosthetic Dentistry
86
1
:
101
106
.
31
Jakubiak
,
J. F.
and
J. E.
Rabek
.
1999
.
Photoinitiators for visible light polymerization.
Polimery
44
7–8
:
447
461
.
32
Van Meerbeek
,
B.
,
J.
De Munck
,
Y.
Yoshida
,
S.
Inoue
,
M.
Vargas
,
P.
Vijay
,
K.
Van Landuyt
,
P.
Lambrechts
, and
G.
Vanherle
.
2003
.
Buonocore Memorial Lecture. Adhesion to enamel and dentin: Current status and future challenges.
Operative Dentistry
28
3
:
215
235
.
33
Sanares
,
A. M.
,
A.
Itthagarun
,
N. M.
King
,
F. R.
Tay
, and
D. H.
Pashley
.
2001
.
Adverse surface interactions between one-bottle light-cured adhesives and chemical-cured composites.
Dental Materials
17
6
:
542
556
.
34
Nyunt
,
M. M.
and
Y.
Imai
.
1996
.
Adhesion to dentin with resin using sulfinic acid initiator system.
Dental Materials Journal
15
2
:
175
182
.
35
Tay
,
F. R.
,
N. M.
King
,
B. I.
Suh
, and
D. H.
Pashley
.
2001
.
Effect of delayed activation of light-cured resin composites on bonding of all-in-one adhesives.
The Journal of Adhesive Dentistry
3
3
:
207
225
.

Author notes

Tatsuki Oto, DDS, graduate student, Nihon University School of Dentistry, Department of Operative Dentistry, Tokyo, Japan

Genta Yasuda, DDS, graduate student, Nihon University School of Dentistry, Department of Operative Dentistry, Tokyo, Japan

Keishi Tsubota, DDS, PhD, assistant professor, Nihon University School of Dentistry, Department of Operative Dentistry, Tokyo, Japan

Hiroyasu Kurokawa, DDS, PhD, assistant professor, Nihon University School of Dentistry, Department of Operative Dentistry, Tokyo, Japan

Masashi Miyazaki, DDS, PhD, professor and chair, Nihon University School of Dentistry, Department of Operative Dentistry, Tokyo, Japan

Jeffrey A Platt, DDS, MS, associate professor, director of Dental Materials, Indiana University School of Dentistry, Department of Restorative Dentistry, Division of Dental Materials, Indianapolis IN, USA
